XDD1 Diaphragm
Dry Pumping
Lubricant-free technology
< 2 mbar Ideal backing pump for small turbos Lightweight and compact Small footpring allowing flexibility of use > 10,000 hours
Typical lifetime of diaphragms and valves
AC or DC operation
For a range of systemisation options
XDD1 diaphragm pumps are used for backing small compound turbomolecular pumps in clean, high vacuum applications, and also designed to be free standing bench top units.
XDD1 sizes
|
|
|
|
|
||
| XDD1 | XDD1 | XDD1 | XDD1 | ||
| Voltage | a.c. / d.c. | a.c. | d.c. | d.c. | d.c. |
| Peak pumping speed | m³/h | 1.2 | 0.6 | 1.4 | 1.7 |
| Ultimate vacuum | mbar | <2 | <2 | <2 | <2 |
| Motor power | W | 80 | 64 | 64 | 64 |
| Weight | kg | 6.5 | 4.1 | 4.1 | 4.1 |
A typical ultimate pressure of better than 5 x 10⁻⁸ mbar can be achieved when using an XDD1 to back a 70l/s turbomolecular pump.
The 24 V version is designed to provide a complete pumping package using the Edwards Turbo and Instrument Controller (TIC). The d.c. voltage motor runs on 24 V via a 15 pin DIN connector. By selecting the appropriate mode the pump speed can be controlled by the user to provide variable pumping speed. This version is suited to the customer who is building their own a system. The pump is a compact and efficient. Under normal conditions the XDD1 is virtually maintenance free, the lifetime of the diaphragms and valves is typically > 10,000 operating hours, depending on the application.
DOCUMENTATION & VIDEOS

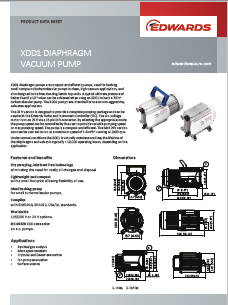

XDD1 Product Catalogue Information
